AM.STRIP.500
Dimensions
:470x1.420x200
Weight
:≈ 46
Programmable
:
No
Processing Principle
:
Linear
Cable Geometry
:
Round
Cable Types
:
Strands
Other
Multicore
Outer Sheath Material
:
PVC
Other
Pure
Stripping Diameter
:30
Stripping Length Full Strip
:500
Maximum Insertion Depth
:112

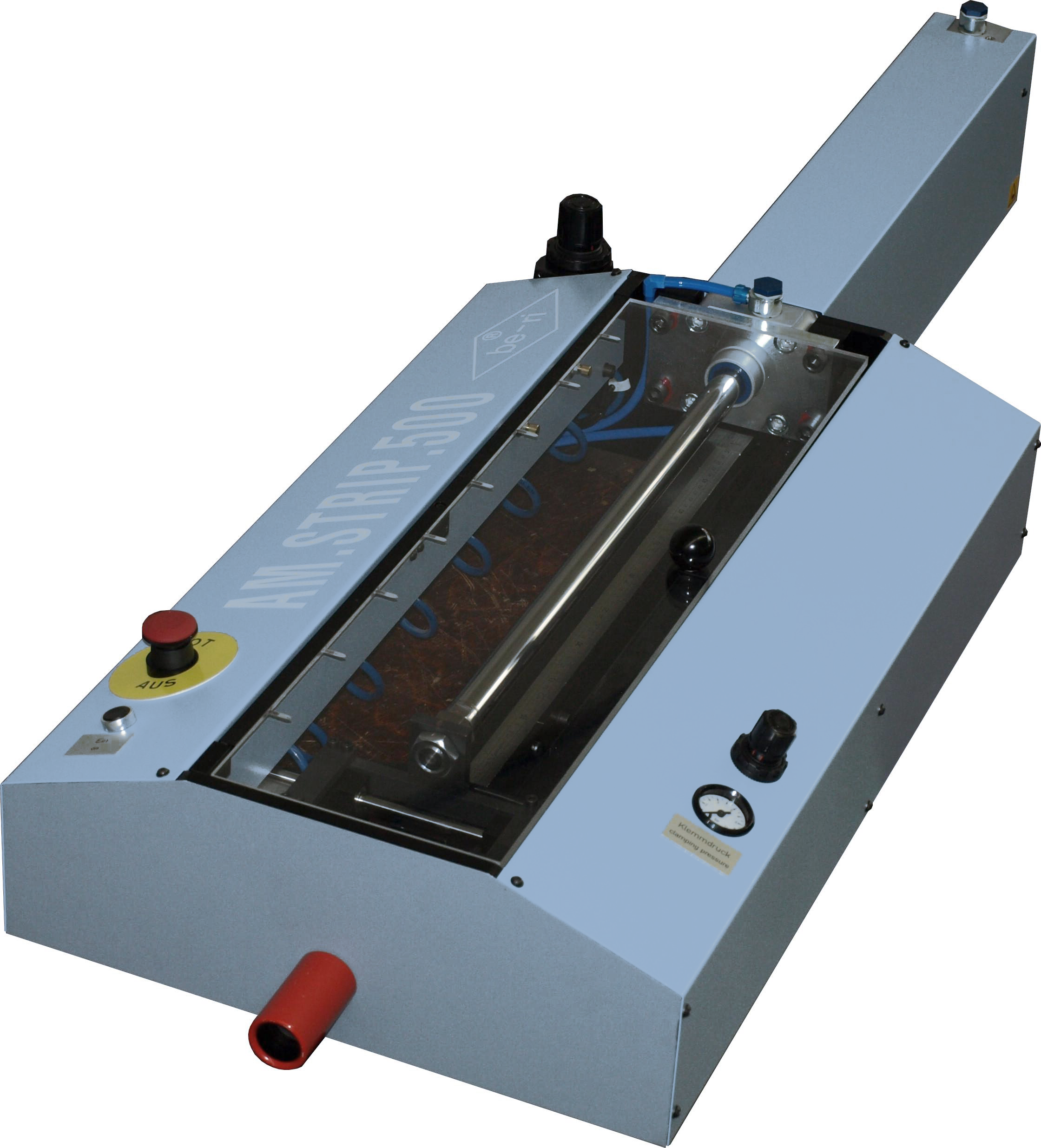

The AM.STRIP.500 is a semi-automatic, pneumatic cable stripping machine for the industrial stripping of cables up to an outer diameter of 30 mm² (standard) and a stripping length of 500 mm (full stripping).
The AM.STRIP.750 and AM.STRIP.1000 from the same series are available for longer stripping lengths\*.
\* Cable tests at the factory required.
