AM.STRIP.1
Dimensions
:340x340x150
Weight
:≈ 12,2
Programmable
:
No
Processing Principle
:
Linear
Cable Geometry
:
Round
Flat
Cable Types
:
Strands
Other
Multicore
Outer Sheath Material
:
PVC
Other
Pure
Stripping Diameter
:12.5
Stripping Length Full Strip
:65
Maximum Insertion Depth
:34
Partial Strip
:250

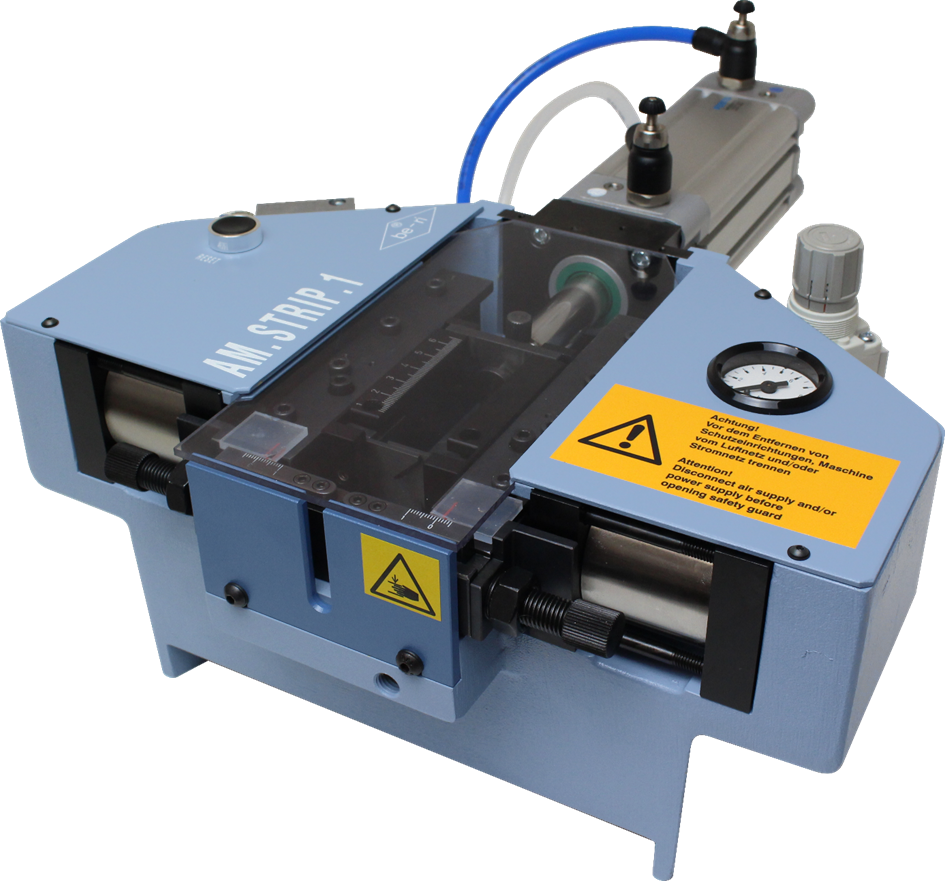

The AM.STRIP.1 is a universally applicable, semi-automatic wire stripping machine for robust industrial use and the economical production of small to medium-sized series.
Special blades adapted to the cable to be processed allow almost all commercially available cables to be processed. All changeover work can be carried out in seconds without tools.
When using prism blades, the machine automatically adapts to other cross-sections up to 6 mm², depending on the cable sheath in the basic setting. To a limited extent and for smaller batch sizes, the machine can also be used for cutting to length.
AM.STRIP.1S: Variant with pneumatic sensor.
