AM.STRIP.015
Dimensions
:95x280x165
Weight
:≈ 3,5
Programmable
:
No
Processing Principle
:
Linear
Cable Geometry
:
Round
Flat
Cable Types
:
Strands
Other
Multicore
Outer Sheath Material
:
PVC
Other
Pure
Stripping Diameter
:5
Stripping Length Full Strip
:15
Maximum Insertion Depth
:11.5
Partial Strip
:15

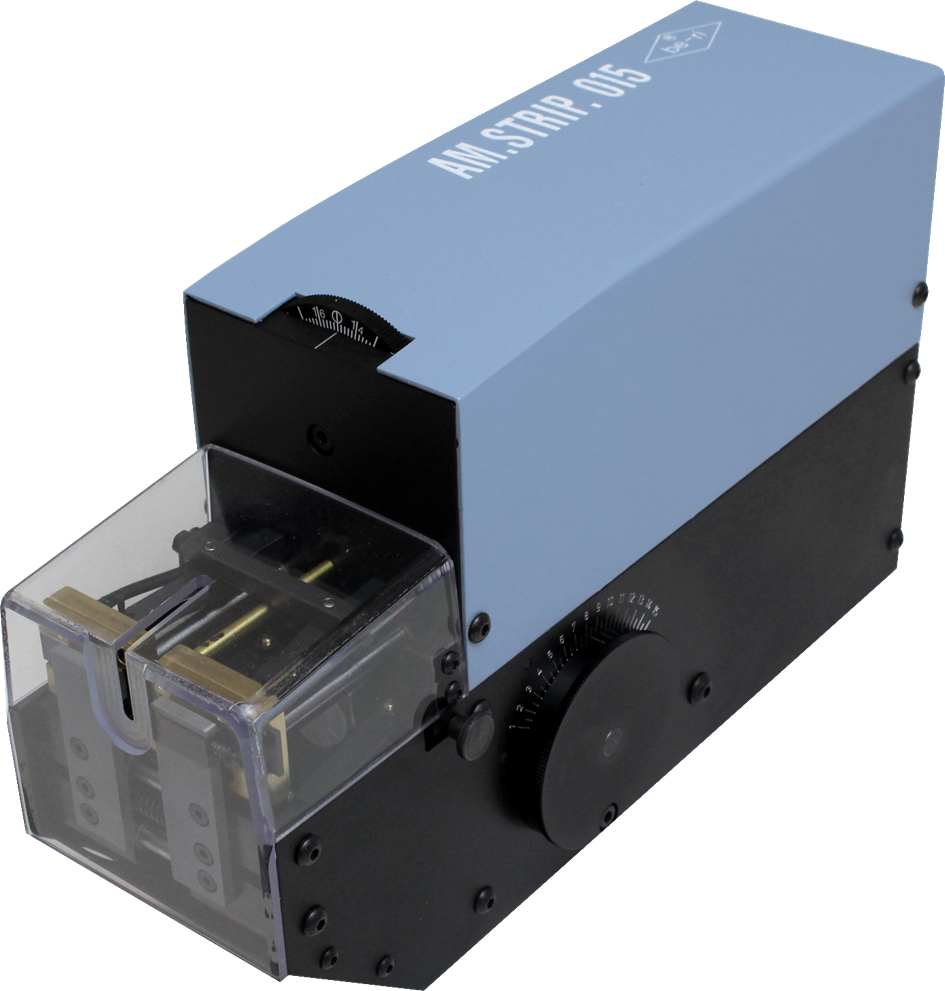

The AM.STRIP.015 pneumatic stripping machine has been specially developed for processing difficult insulation. The standard V-stripping blades are ideal for processing all common types of wire insulation. Special nozzle blades adapted to the cable can be used in seconds and without tools, enabling extremely precise stripping results even with problematic insulation made of Teflon, silicone, Kynar, Mylene, Neoprene, etc.
The AM.STRIP.015 is equipped with all safety devices and complies with the EU Machinery Directive.
Also available in an inch/AWG version.
